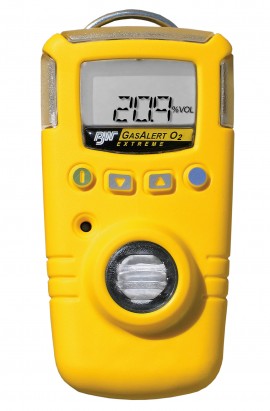

BW GasAlert Extreme Single Gas Detectors Series

Downloads: manual

BW GasAlert Extreme Single Gas Detectors Series

For users who need a permanent use monitor with a real-time PPM display in a monitor that's lightweight, compact and easy-to-use form. Features include datalogging, wide range of tamperproof user options and multi-language display.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

Honeywell BW Solo Series Single-Gas Detectors

Model: BW Solo Series

Lightweight and user-friendly, this single-gas detector series features an easy-to-service single-gas detector with BLE connectivity. With real-time visibility into the status and safety of hazardous-area workers, these detectors help companies respond faster, more knowingly, and decisively to safety incidents.

Learn More

BW GAXT Specifications

GasAlert for	Measuring Range	Alarm Setpoints (Factory defaults are shown. Alarm levels are field-adjustable.)				Relative Humidity non-condensing	Operating Temperature
		TWA Alarm	STEL Alarm	Low Alarm	High Alarm
Hydrogen Sulfide (H2S)	0-100 ppm	10 ppm	15 ppm	10 ppm	15 ppm	15-90	-40 to +50 oC -40 to +122 oF
Sulfur Dioxide (SO2)	0-100 ppm	2 ppm	5 ppm	2 ppm	5 ppm	15-90
Hydrogen Cyanide (HCN)	0-30.0 ppm	4.7 ppm	10.0 ppm	4.7 ppm	10.0 ppm	15-95
Carbon Monoxide (CO)	0-999 ppm	35 ppm	200 ppm	35 ppm	200 ppm	15-90	-30 to +50 oC -22 to +122 oF
Chlorine (CI2)	0-50.0 ppm	0.5 ppm	1.0 ppm	0.5 ppm	1.0 ppm	10-95	-20 to +50 oC -4 to +122 oF
Nitrogen Dioxide (NO2)	0-99.9 ppm	2.0 ppm	5.0 ppm	2.0 ppm	5.0 ppm	15-90
Ammonia (NH3)	0-100 ppm	25 ppm	35 ppm	25 ppm	50 ppm	15-90
Phosphine (PH3)	0-5.0 ppm	0.3 ppm	1.0 ppm	0.3 ppm	1.0 ppm	15-90
Ethylene Oxide (ETO)	0-100 ppm	1 ppm	5 ppm	1 ppm	5 ppm	15-90
Chlorine Dioxide (ClO2)	0-1 ppm	0.1 ppm	0.3 ppm	0.1 ppm	0.3 ppm	15-95
Ozone (O3)	0-1 ppm	0.1 ppm	0.1 ppm	0.1 ppm	0.2 ppm	15-90
Nitric Oxide (NO)	0-250 ppm	25 ppm	25 ppm	25 ppm	25 ppm	15-90
Oxygen (O2)	0-30.0%	N/A	N/A	19.5 %	22.5%	0-99

TESTS
Full function self-test	Full function self-test on activation (auto)
GENERAL SPECIFICATIONS	Impact-resistant ABS enclosure
Humidity	5% to 95% RH (non-condensing) (15% to 90% non-condensing for PH3 and NH3)
EMI/RFI	Complies with EMC Directive 89/336/EEC
Battery type	3-volt lithium (camera battery available locally)
Battery life	3 years (9,000 hours)
Size	1.1 x 2.0 x 3.75 inches / 28 x 50 x 95 mm
Weight	2.9 oz. / 83 g

What's included with the BW GAXT

BW GasAlert Extreme Single Gas Detectors Series

manual for the BW GasAlert Extreme Single Gas Detectors Series

Article: How to Select the Right Gas Detection Solution

Brochure: Gas Detection - Gas Book

Brochure: Gas Detection - Gas Book 2

Brochure: Gas Detection - Gas Book 3

BW GasAlert Extreme Sensors

Sensor	Description	Learn More
PS-RC10	BW PS-RC10 Replacement chlorine (Cl₂) sensor - Note: 1 year warranty	Learn More
PS-RD04	BW PS-RD04 Replacement nitrogen dioxide (NO₂) sensor	Learn More
PS-RH04S	BW PS-RH04S Replacement hydrogen sulfide (H₂S) sensor	Learn More
PS-RM04H	BW PS-RM04H Replacement carbon monoxide (CO) sensor, H₂ resistant	Learn More
PS-RS04	BW PS-RS04 Replacement sulfur dioxide (SO₂) sensor	Learn More
PS-RZ10	BW PS-RZ10 Replacement hydrogen cyanide (HCN) sensor	Learn More
SR-A04	BW SR-A04 Replacement ammonia (NH₃) sensor - Note: 1 year warranty	Learn More
SR-A204	BW SR-A204 Replacement ammonia (NH₃) sensor, extended range - Note: 1 year warranty	Learn More
SR-E04	BW SR-E04 Replacement ethylene oxide (ETO) sensor - Note: 1 year warranty	Learn More
SR-G04	BW SR-G04 Replacement ozone (O₃) sensor - Note: 1 year warranty	Learn More
SR-M04-SC	BW SR-M04-SC Replacement carbon monoxide sensor	Learn More
SR-N04	BW SR-N04 Replacement nitric oxide (NO) sensor	Learn More
SR-P04	BW SR-P04 Replacement phosphine (PH₃) sensor	Learn More
SR-V04	BW SR-V04 Replacement chlorine dioxide (ClO₂) sensor - Note: 1 year warranty	Learn More
SR-X2V	BW SR-X2V Replacement oxygen (O₂) sensor	Learn More
